Kyvision - Software de gestión SNMP de Kyland

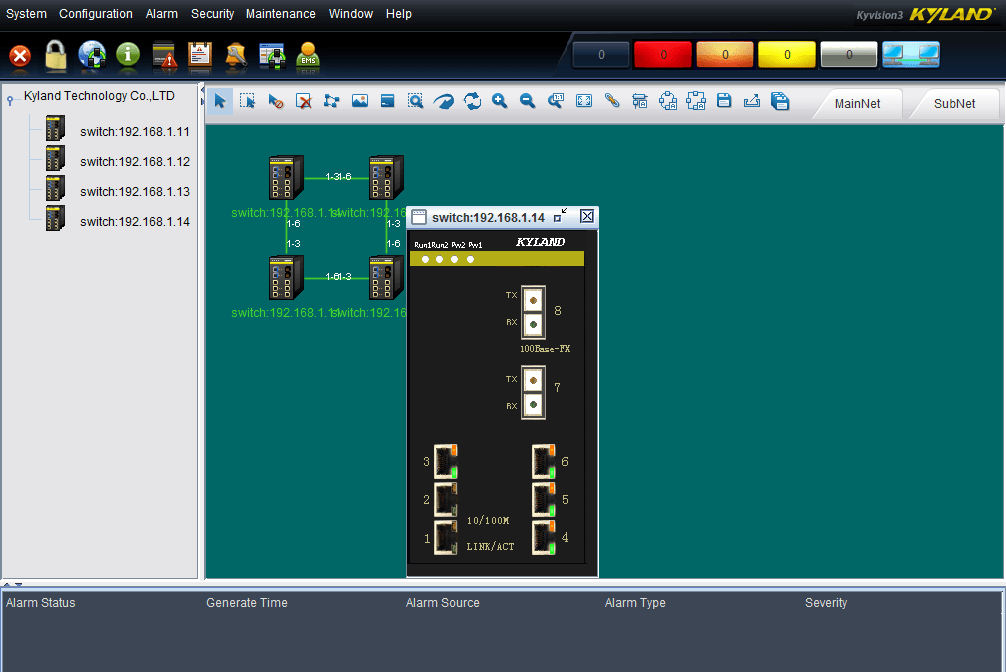

Topology Management

- Support IP segment topology and designated IP topology.
- Automatic topology enables automatic device creation and automatic connection between device ports.
- Display device online status and real-time alarms on topological map.
- Support Zoom in\Zoom out, step square\step round, align, save, export and other operates on topological map.

Device Management

- Remote diagnostic device status and the running status of each port.
- View the real-time ports traffic statistics.
- View the device panel diagram.
- View and export the device configuration files.

Alarm Management

- Real-time error detection through SNMP or Trap.
- Alarm ring notification and alarm confirmation mechanism.
- Supports alarm history query according to subnet,devices,time period.
- Support alarm data export.
- Emphasizes abnormal devices and connections by particular colors.

Maintenance Management

- Remote batch import/export device configuration files.
- Remote batch upgrade device firmware.
- Supports manual or automatic backup of network management data.
- Supports recover network management data from local or server files.
- Provide network management data cleaning function.

Right Management

- Provides three roles for administrators, operators, and monitors.
- Administrators can create\delete users, modify user properties.
- Administrators and operators can grant the authority of monitoring the subnet to a monitors.
- Provides manual lock and timing lock functions to prevent illegal logon.
- The user cannot log on two clients at the same time.

Log Management

- Provide operation logs and running logs management.
- Supports Multi-conditional combination query and export.

Supports third party devices

- Automatic discovery and topology devices by public LLDP.
- View device IP address, routing information, system information etc.
- Dynamic display of the actual running state of each port (ON/OFF).
- View the actual traffic statistics of each port.
- View the number of bytes sent per second, the number of unicast packets/non-unicast packets/error packets etc.
- Check device communication abnormal alarm.
- Check port alarm.

Software Requirements

OS: Windows XP/Windows 7/Windows 10/Windows 2003 Server/Windows 2000 Server, Linux

Minimum Hardware Requirements

- Configuration: Windows Server Windows Client
- CPU: Pentium 4 Pentium 4
- CPU Frequency: 3GHZ 3GHZ
- Memory: 1GB 512MB
- Harddisk: 40GB 20GB
- CD-ROM: 48x 48x
- Network Card: 100M 100M
- Display: >=1024*768 >=1024*768
